Switch type: microswitch
Operating temperature: -20...70°C
Soldering temperature: 230°C / 5 s
Mechanical durability: 1x 10^5 cycles
Contacts configuration: SPST-NO
Stable positions number: monostable
Pitch: 1.7/5.15 mm
Switching torque: 1.6 N
Min. insulation resistance: 1000 MO
Max contact resistance: 500 mO
Contact material: stainless steel
Contact plating: silver
Terminals material: brass
Terminals plating: silver
Body material: thermoplastic material, stainless steel
Button height: 2.5 mm
Fitting: SMD

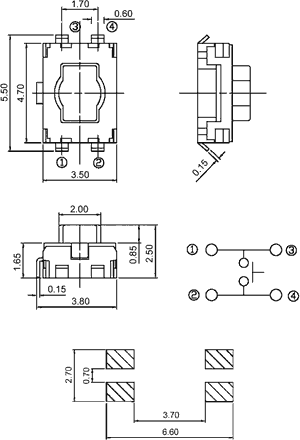

Body dimensions: 4.7 x 3.5 mm
